Implementing camera text recognition with Expo and a React Native text scanner

In this tutorial, we’ll use React Native and the Expo framework to build a cross-platform app for Android and iOS that recognizes and extracts text from a live camera stream.

To implement the text recognition functionalities, we’ll use the Scanbot Text Pattern Scanner SDK.

Building our app involves the following steps:

1. Preparing the project
2. Installing the Text Pattern Scanner SDK
3. Initializing the SDK
4. Implementing the scanning feature

import { useCallback } from "react";
import { Button, Alert } from "react-native";
import ScanbotSDK, { PatternContentValidator } from "react-native-scanbot-sdk";
import {
  TextPatternScannerScreenConfiguration,
  startTextPatternScanner,
} from "react-native-scanbot-sdk/ui_v2";

export default function Index() {
  const onTextScanner = useCallback(async () => {
    try {
      if (!(await ScanbotSDK.getLicenseInfo()).isLicenseValid) {
        return;
      }

      const configuration = new TextPatternScannerScreenConfiguration();

      const patternValidator = new PatternContentValidator({
        pattern: "\\bS\\w{5}t\\b",
        allowedCharacters:
          "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz",
        matchSubstring: false,
        patternGrammar: "REGEX",
      });
      configuration.scannerConfiguration.validator = patternValidator;

      const result = await startTextPatternScanner(configuration);

      if (result.status === "OK") {
        Alert.alert(result.data.rawText);
      }
    } catch (e: any) {
      console.error(e.message);
    }
  }, []);

  return <Button title={"Start Text Scanner"} onPress={onTextScanner} />;
}

Requirements

Before starting app development with React Native, you need to set up your local development environment. You’ll also need a real device to get the full benefits from using the SDK. You can find the steps for preparing your local environment in the Expo documentation.

Step 1: Prepare the project

1. Create a new Expo project

First, let’s create our Expo app using the Expo CLI, which will walk us through the setup process.

To create an Expo app, run the following command in the terminal:

npx create-expo-app@latest

When prompted, name your app, e.g., “expo-text-scanner”. Then navigate into the project directory.

cd expo-text-scanner

2. Remove boilerplate code

The Expo CLI has generated some screens to ensure the app isn’t empty. The generated code can be quickly removed by running the following command:

npm run reset-project

Now the app directory only contains an index file, which is our only screen, and a _layout.tsx file.

3. Generate the native projects

To install expo-dev-client, we need to run the following command:

npx expo install expo-dev-client

Afterward, we generate our iOS and Android projects with:

npx expo prebuild

Step 2: Install the Text Pattern Scanner SDK

Next, install the Scanbot React Native SDK.

npm install react-native-scanbot-sdk

Now we just need to make the necessary native changes to the projects.

You can use the SDK’s config plugin or manually configure the native projects. We’ll showcase both so you can pick the method you prefer.

Method A: Expo config plugin

To utilize the plugin, add the following to your app.json file:

"plugins": [
  [
    "react-native-scanbot-sdk",
    {
      "iOSCameraUsageDescription": "Scanning permission",
      "largeHeap": true,
      "mavenURLs": true
    }
  ]
],

Then run:

npx expo prebuild

Now you’re all set. You can skip the Android and iOS native changes when using this plugin.

Method B: Manual configuration

Alternatively, you can also apply the changes to the native projects manually.

Android

Let’s enable the largeHeap flag to process more memory intensive operations.

Set the property android:largeHeap="true" in the <application> tag in the app’s Manifest in android/app/src/main/AndroidManifest.xml.

For development builds, we also need to add our Maven package URLs in android/build.gradle

allprojects {
    repositories {
      // ... other maven rpositories
      maven { url "https://nexus.scanbot.io/nexus/content/repositories/releases/" }
      maven { url "https://nexus.scanbot.io/nexus/content/repositories/snapshots/" }
    }
}

iOS

For iOS, we need to include a description for the camera permission in ios/{projectName}/Info.plist anywhere inside the element:

<key>NSCameraUsageDescription</key>
<string>Grant camera access to scan text.</string>

Now that the project is set up, we can start integrating the scanning functionalities.

Step 3: Initializing the SDK

Before using any feature of the Scanbot SDK, we need to initialize it. Ideally, initialization should be done as soon as the app is launched.

    ScanbotSDK
        .initializeSDK({ licenseKey: "" })
        .then(result => console.log(result))
        .catch(err => console.log(err));

There are several ways to initialize the SDK, depending on your use case. In this tutorial, we’re going to initialize the SDK inside a useEffect in our app/_layout.tsx file.

So _layout.tsx would look like this:

import {Stack} from "expo-router";
import {useEffect} from "react";
import ScanbotSDK from 'react-native-scanbot-sdk';

export default function RootLayout() {

    useEffect(() => {
        ScanbotSDK
            .initializeSDK({licenseKey: ""})
            .then(result => console.log(result))
            .catch(err => console.log(err));
    }, []);

    return (
        <Stack>
            <Stack.Screen name="index"/>
        </Stack>
    );
}

Step 4: Implementing the scanning feature

In app/index.tsx, we’re going to add a button that will call up the scanning interface.

First, let’s add the necessary imports for the integration.

import { useCallback } from "react";
import { Button, Alert } from "react-native";
import ScanbotSDK from "react-native-scanbot-sdk";
import {
  TextPatternScannerScreenConfiguration,
  startTextPatternScanner,
} from "react-native-scanbot-sdk/ui_v2";

Since we ran the reset-project command earlier, the file should only contain a single view with a Text component. Let’s replace it with a Button component.

<Button title={"Start Text Scanner"} onPress={onTextScanner} />

We also need to define onTextPatternScanner, which will start the scanning process.

const onTextScanner = useCallback(async () => {
  try {
    if (!(await ScanbotSDK.getLicenseInfo()).isLicenseValid) {
      return;
    }

    const configuration = new TextPatternScannerScreenConfiguration();
    const result = await startTextPatternScanner(configuration);

    if (result.status === "OK") {
      Alert.alert(result.data.rawText);
    }
  } catch (e: any) {
    console.error(e.message);
  }
}, []);

Your index.tsx will look like this:

import { useCallback } from "react";
import { Button, Alert } from "react-native";
import ScanbotSDK from "react-native-scanbot-sdk";
import {
  TextPatternScannerScreenConfiguration,
  startTextPatternScanner,
} from "react-native-scanbot-sdk/ui_v2";

export default function Index() {
  const onTextScanner = useCallback(async () => {
    try {
      if (!(await ScanbotSDK.getLicenseInfo()).isLicenseValid) {
        return;
      }

      const configuration = new TextPatternScannerScreenConfiguration();
      const result = await startTextPatternScanner(configuration);

      if (result.status === "OK") {
        Alert.alert(result.data.rawText);
      }
    } catch (e: any) {
      console.error(e.message);
    }
  }, []);

  return (
    <Button title={"Start Text Scanner"} onPress={onTextScanner} />
  );
}

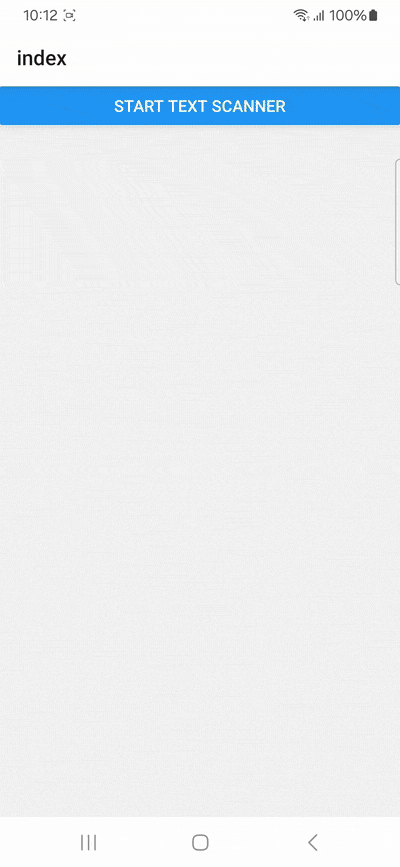

Feel free to run the app on your Android or iOS device using the following commands:

For Android:

npx expo run:android --device

For iOS:

npx expo run:ios --device

Optional: Set a text pattern

As it is now, our scanner will extract any text inside the viewfinder. But we can also pre-define the text we’re looking for, e.g., using regular expressions.

To do that, first import the PatternContentValidator in your index.tsx:

import ScanbotSDK, { PatternContentValidator } from "react-native-scanbot-sdk";

Then configure it for your use case. In this example, we’re only extracting seven-letter words beginning with “S” and ending in “t” (regex pattern \bS\w{5}t\b plus escape characters).

const patternValidator = new PatternContentValidator({
  pattern: "\\bS\\w{5}t\\b",
  allowedCharacters:
    "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz",
  matchSubstring: false,
  patternGrammar: "REGEX",
});
configuration.scannerConfiguration.validator = patternValidator;

Your final index.tsx will look like this:

import { useCallback } from "react";
import { Button, Alert } from "react-native";
import ScanbotSDK, { PatternContentValidator } from "react-native-scanbot-sdk";
import {
  TextPatternScannerScreenConfiguration,
  startTextPatternScanner,
} from "react-native-scanbot-sdk/ui_v2";

export default function Index() {
  const onTextScanner = useCallback(async () => {
    try {
      if (!(await ScanbotSDK.getLicenseInfo()).isLicenseValid) {
        return;
      }

      const configuration = new TextPatternScannerScreenConfiguration();

      const patternValidator = new PatternContentValidator({
        pattern: "\\bS\\w{5}t\\b",
        allowedCharacters:
          "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz",
        matchSubstring: false,
        patternGrammar: "REGEX",
      });
      configuration.scannerConfiguration.validator = patternValidator;

      const result = await startTextPatternScanner(configuration);

      if (result.status === "OK") {
        Alert.alert(result.data.rawText);
      }
    } catch (e: any) {
      console.error(e.message);
    }
  }, []);

  return <Button title={"Start Text Scanner"} onPress={onTextScanner} />;
}

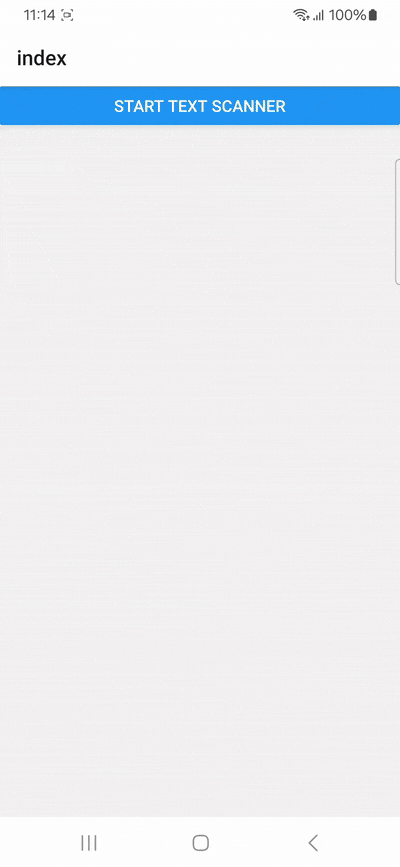

Now run the app on your Android or iOS device using the following commands:

For Android:

npx expo run:android --device

For iOS:

npx expo run:ios --device

Conclusion

And that’s it! You’ve successfully built a cross-platform text scanning app with React Native and Expo 🎉

If this tutorial has piqued your interest in integrating scanning functionalities into your React Native app, make sure to take a look at the SDK’s other neat features in the Scanbot React Native SDK documentation – or run our example project for a more hands-on experience.

Should you have questions about this tutorial or run into any issues, we’re happy to help! Just shoot us an email via tutorial-support@scanbot.io.

Happy scanning! 🤳
