How to build a Blazor Document Scanner web app with C#

In this tutorial, you’ll learn how to create a web app for scanning documents using Blazor, Microsoft’s framework for building client-side UIs with C# and HTML. To integrate the scanning functionalities, you’ll use the Scanbot Web Document Scanner SDK.

You’ll achieve this in three steps:

1. Preparing the project
2. Implementing the document scanning functionalities
3. Building the UI

Prerequisites

• VS Code – however, you can also follow along using another IDE (e.g., JetBrains Rider), since the process will be similar
• .NET SDK
• C# Dev Kit extension for VS Code

Step 1: Prepare the project

Start by creating a new Blazor project.

In VS Code, you can use the command palette: Select “.NET: New Project…“, then “Blazor Web App“. Name your project (e.g., “BlazorDocumentScanner”), confirm the project directory, and select “Create project“.

Next, open Components/App.razor and add the script for including the Scanbot Web SDK from a CDN in the file’s body, below <script src="_framework/blazor.web.js"></script>.

<script src="https://cdn.jsdelivr.net/npm/scanbot-web-sdk@latest/bundle/ScanbotSDK.ui2.min.js"></script>

Step 2: Implement the document scanning functionalities

Create a new file wwwroot/js/scanbotSDKService.js, which will contain code for running the Scanbot Web SDK’s functions using Blazor’s JavaScript interop.

Open the file and add a method for initializing the SDK:

let scanbotSDK;

export async function initialize() {
  try {
    scanbotSDK = await ScanbotSDK.initialize({
      licenseKey: "",
      enginePath:
        "https://cdn.jsdelivr.net/npm/scanbot-web-sdk@latest/bundle/bin/complete/",
    });

    console.log(scanbotSDK);
  } catch (e) {
    console.log(e.name + ": " + e.message);
  }
}

Then also add a method for starting the document scanner:

export async function startDocumentScanner() {
  const config = new ScanbotSDK.UI.Config.DocumentScanningFlow();
  const result = await ScanbotSDK.UI.createDocumentScanner(config);
  return result;
}

This will use the document scanner’s default configuration.

Step 3: Build the UI

Open Components/Pages/Home.razor (or another component of your choice) and replace the H1 and welcome text with a button that starts the document scanner.

<div class="row bg-white justify-content-center">
   <div class="list-group">
       <button type="button" class="list-group-item list-group-item-action" @onclick="StartScanDocument">Scan Document</button>
   </div>
</div>

At the top of the file, inject the Blazor JavaScript interop service into the component and set its render mode to interactive server-side rendering.

@inject IJSRuntime JS

@rendermode InteractiveServer

Then, below the “Scan Document” button, use the interop mechanism to call the initialize function from scanbotSDKService.js.

@code {
    private IJSObjectReference? jsObjectReference;

    protected override async Task OnAfterRenderAsync(bool firstRender)
    {
        if (firstRender)
        {
            try
            {
                jsObjectReference = await JS.InvokeAsync<IJSObjectReference>("import", "./js/scanbotSDKService.js");

                if (jsObjectReference is not null)
                {
                    await jsObjectReference.InvokeVoidAsync("initialize");
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"Error invoking: {ex.Message}");
            }
        }
    }
}

In addition, you need to call the startDocumentScanner function.

private async Task StartScanDocument()
{
    try
    {
        if (jsObjectReference is not null)
        {
            await jsObjectReference.InvokeAsync<string>("startDocumentScanner");
        }
    }
    catch (Exception ex)
    {
        Console.WriteLine($"Error invoking: {ex.Message}");
    }
}

Your final Home.razor file will look like this:

@page "/"

@inject IJSRuntime JS

@rendermode InteractiveServer

<PageTitle>Home</PageTitle>

<div class="row bg-white justify-content-center">
    <div class="list-group">
        <button type="button" class="list-group-item list-group-item-action" @onclick="StartScanDocument">Scan Document</button>
    </div>
</div>

@code {
    private IJSObjectReference? jsObjectReference;

    protected override async Task OnAfterRenderAsync(bool firstRender)
    {
        if (firstRender)
        {
            try
            {
                jsObjectReference = await JS.InvokeAsync<IJSObjectReference>("import", "./js/scanbotSDKService.js");

                if (jsObjectReference is not null)
                {
                    await jsObjectReference.InvokeVoidAsync("initialize");
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"Error invoking: {ex.Message}");
            }
        }
    }

    private async Task StartScanDocument()
    {
        try
        {
            if (jsObjectReference is not null)
            {
                await jsObjectReference.InvokeAsync<string>("startDocumentScanner");
            }
        }
        catch (Exception ex)
        {
            Console.WriteLine($"Error invoking: {ex.Message}");
        }
    }
}

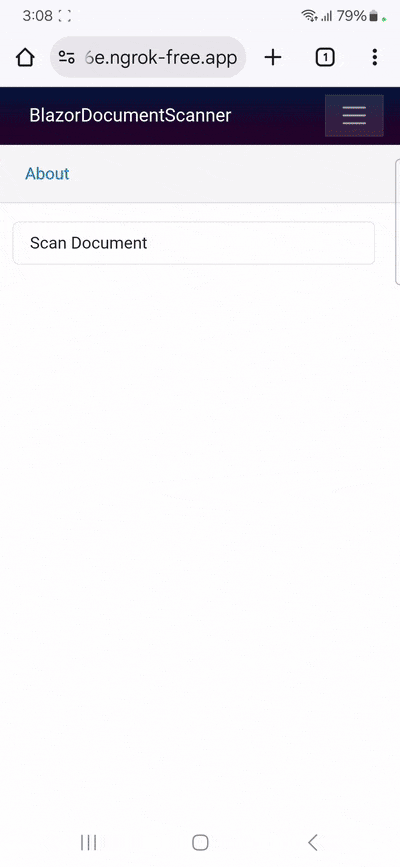

Now cd into your project directory and run the app to test your document scanner!

cd BlazorDocumentScanner

dotnet run

Conclusion

🎉 Congratulations! You’ve successfully built a document scanning web app using Blazor!

If this tutorial has piqued your interest in integrating document scanning functionalities into your web app or website, make sure to take a look at the SDK’s other neat features in the documentation – or run our example project for a more hands-on experience.

Integration guides are also available for the following Web frameworks:

• React
• Vue
• Angular
• Svelte
• Next.js
• Dioxus (Rust)

Should you have questions about this tutorial or run into any issues, we’re happy to help! Just shoot us an email via tutorial-support@scanbot.io.

Happy scanning! 🤳
